Mosskin

ROLE: DESIGNER, RESEARCHER

09/22 - present

Personal project with Wendy Meng

Instructor: Xuan Liu

ABOUT THE PROJECT

A new material that can purify the air and lower the temperature simultaneously to cool down the earth by covering these materials on street furniture.

01 CHALLENGE

Heat waves often lead to poor air quality

High atmospheric pressures capture polluted air above cities

Sun and heat transform primary pollutants into ozone and ultrafine particles

Heat increases power usage (air conditioning in buildings and cars), which in turn increases primary pollutants emissions

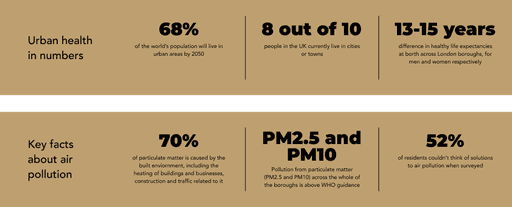

When Heat Waves Meet Air Pollution

The risk of death increased by about 6% on days with extreme high temperatures and by about 5% on days with high concentrations of fine particulate matter.
But risk approximately quadrupled on days when there was both extreme heat and high air pollution.

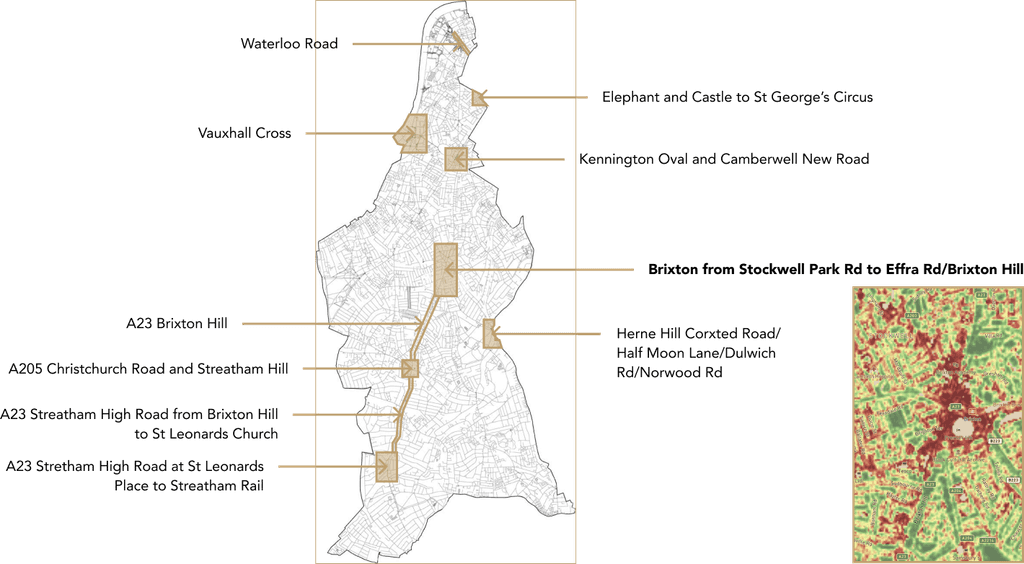

02 SITE

Lambeth

03 TARGET CUSTOMERS

Local Authority / Government

Industry is mostly supplied to or influenced by local authorities in UK.

"The provision, enhancement and management of green infrastructure is the central focus of London Plan policy."

London Plan Guidance

Air Quality Positive Draft

Air Quality Positive should be applied to large-scale development proposals subject to an Environmental Impact Assessment (EIA).

Using Green Infrastructure To Protect People From Air Pollution Guidance

Well considered use of green infrastructure may also form part of Air Quality Positive proposals and should be considered in line with this guidance.

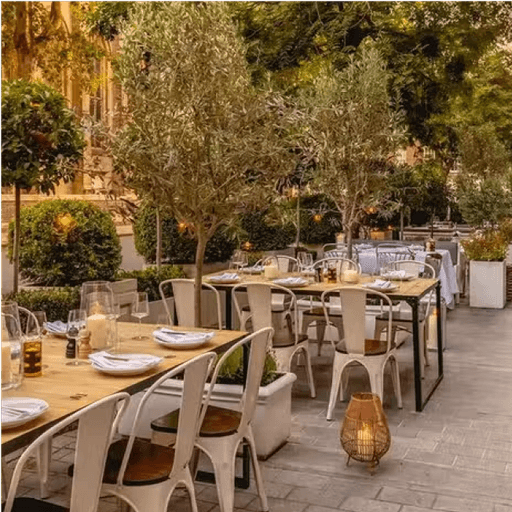

Commercial

Restaurants and hotels accelerate product demand after pandemic.

In 2020, many cities closed indoor dining to curb rising COVID-19 cases. Opening outdoor dinning became the best can do.

"Now, alfresco dining has became permanent feature of some central London streets."

Westminster City

More than 80% of residents and businesses have voted in favor of making outdoor dining a permanent fixture.

Residential

Shift in urban spaces design: Now focusing on public spaces and communities.

Growing market for customized design, bike storage and smart furniture.

04 TECHNOLOGIES

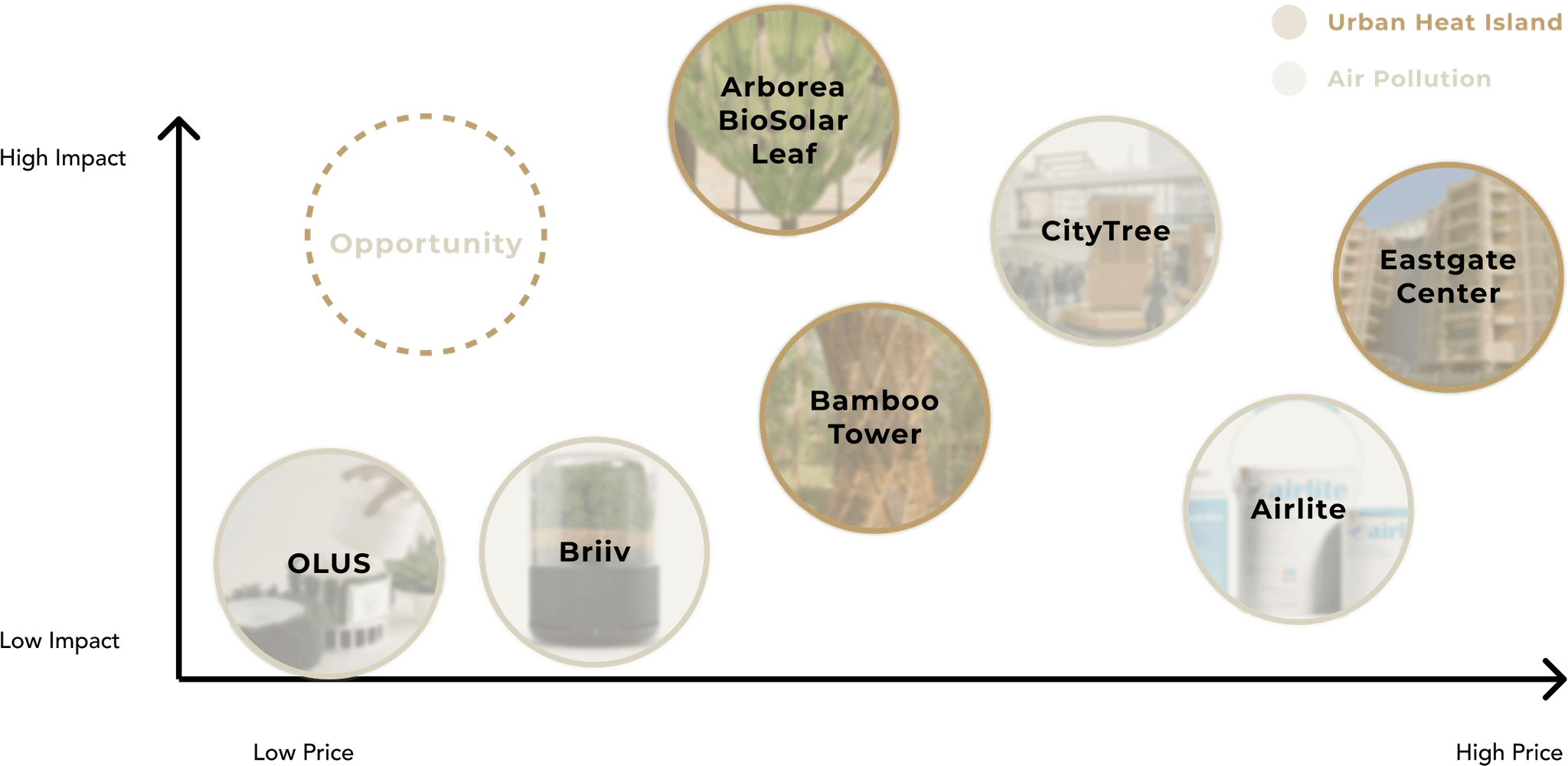

Current Technologies

Plant-Based Technologies

Algae

When exposed to UV radiation from the sun, algae convert dimethylsulfoniopropionate (DMSP) into dimethyl sulfide (DMS), a sulfur compound that contributes to cloud formation when it enters the air, preventing solar radiation from reaching the earth's surface and reflecting it back into space, thereby lowering temperatures.

Moss

Mosses can grow and thrive in all kinds of relatively extreme weather conditions, they do not require a lot of water, and they can go through multiple hydration and rehydration cycles in their lifetime. Some mosses use ammonia as a nutrient. They can absorb and store large amounts of water and can have a considerable cooling effect on the temperature through evaporation.

House Plants

Effective only against indoor pollutants

Leaf Type

Scale

Needle

Broad

The PM capturing capacity of different plant species has been found quite different. Physical structural properties of plant leaf surface have been reported to provide favorable conditions for PM to be adhered to.

Species with wrinkled leaf surface normally shows a higher PM capturing capacity than those with a smooth leaf surface. Deep grooves and ridges on the leaf surfaces provide more room for PM to be intercepted and to embed, and less likely to be released by following wind.

Plant species with a rough and hairy surface prevent PM on the leaf surface from being blown away by the wind. These physical traits of leaf surface make a certain species effective PM accumulators.

Leaf surface hydrophilicity has also been reported to affect the capturing capacity of the roadside plants; high hydrophilic leaves usually possess a high PM capturing capacity.

Size-resolved particle deposition velocities for the different plant species.

05 BRAINSTORMING

Brainstorming

Divider Screens

Flexible Web

Fabric

Rod / Strut

Use Cases

Implementation / Attachment Methods

Wall

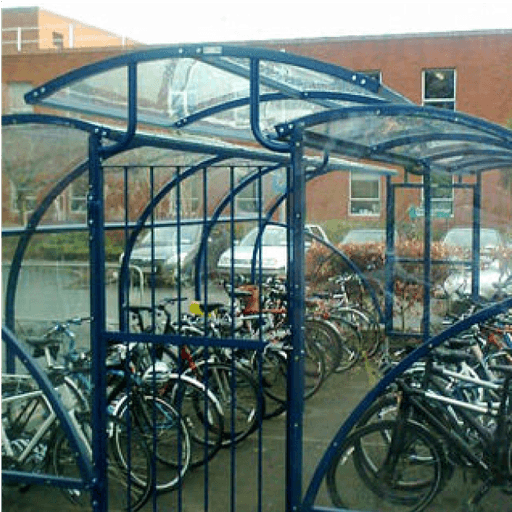

Bike Storage

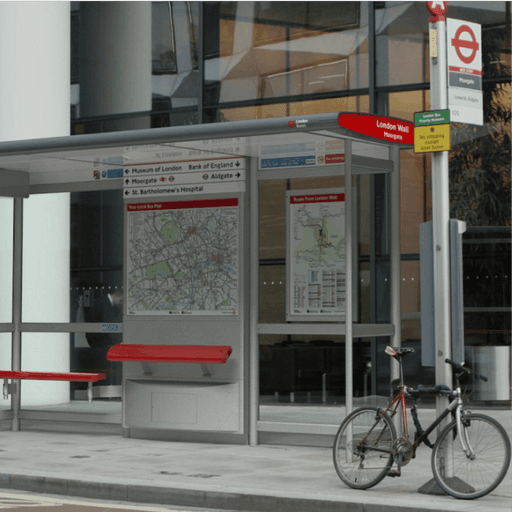

Info Board

Chairs

Trash Bin

Trash Bin

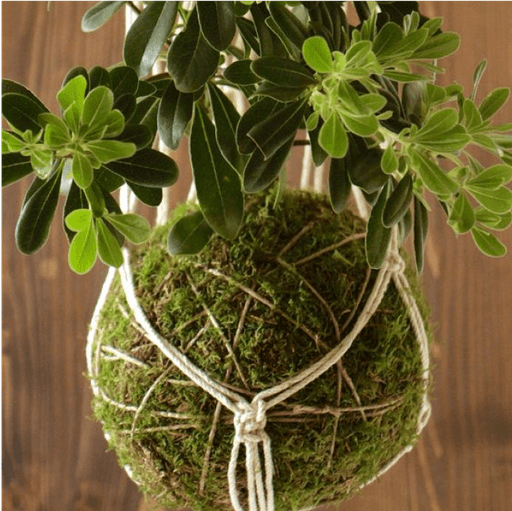

Knots & Methods

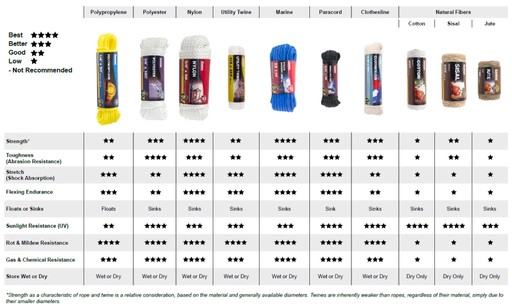

Materials

Mosses can absorb water like a sponge.
Sphagnums can absorb up from 20-30 times their weight.
The materials used should be able to hold the weight, be resistant to outdoor environment,
and moss-friendly.

With Plants & Fake Plants

06 MATERIAL DEVELOPMENT

Research for Moss Growth

Moss Propagation

Organic & Inorganic fertilizer for moss propagation by fragments

Lactic

acid bacteria (LAB) as PGPMs(Plant growth promoting microorganism).

Fertilizer

provide

N-P-K

for

Up - Down - All

growth


Moss Maintenance

Nitrogen-fixing by cyanobacteria co-living with mosses

Example: N-fixing symbiosis between the ubiquitous feather moss and cyanobacterium (Nostoc sp.) that alone fixes between 1.5 and 2.0 kg N ha-1 yr-1 in mid- to late- successional forests of northern Scandinavia and Finland.

Research for Moss Anchoring

Rhizoids

Hairlike structures for anchoring the moss to rock, bark or soil.

Adhesive sulfated non-cellulose polysaccharides by rhizoid tips

Thigmotropic responses, coiling around objects

Forming discs or branching at their tips

Experiment

Step 1

The dried samples were cleaned from dirt and rehydrated by immersion in water, then accurately washed with running water to remove residual dirt.

Step 2

Moss samples are carefully cut into small pieces, for propagation purpose.

Step 3

A 1% agar solution was added to the rehydrated moss, with a moss to agar weight/volume ratio 1/2. The moss/agar mix was then blended in a laboratory blender.

Step 4

The moss paste was spread on the wool yarn, previously soaked in water and drained.

Evaluation

REFERENCE

2022, B. P. J. 21. (2022, June 21). How can moss contribute to urban greening? AZoBuild.com. Retrieved from https://www.azobuild.com/article.aspx?ArticleID=8555

A milestone in UK climate history. Met Office. (2022, July 22). Retrieved from https://www.metoffice.gov.uk/about-us/press-office/news/weather-and-climate/2022/july-heat-review

Admin. (2022, August 22). Interfacing PMS5003 PM2.5 air quality sensor with Arduino. How To Electronics. Retrieved from https://how2electronics.com/interfacing-pms5003-air-quality-sensor-arduino/

Afanador-Barajas, L. N., Navarro-Noya, Y. E., Luna-Guido, M. L., & Dendooven, L. (2021). Impact of a bacterial consortium on the soil bacterial community structure and maize (Zea mays L.) cultivation. Scientific Reports, 11(1). https://doi.org/10.1038/s41598-021-92517-0

Air pollution: How airlite can reduce harmful gas emissions into the air. Medium. (2019, June 11). Retrieved from https://medium.com/@AirliteGlobal/air-pollution-how-airlite-can-reduce-harmful-gas-emissions-into-the-air-1509dd8e785c

Air Pollution: The Heat Factor. (n.d.). [web log]. Retrieved from https://www.teqoya.com/air-pollution-the-heat-factor/.

AMA Research. (2022). (rep.). Street Furniture and Lighting Market Report UK 2022-2026. Retrieved from https://constructuk.com/street-furniture-lighting-market-report-uk-2022-2026-new-report-from-ama-research/.

Ashby, M.F., Cebon, D., & Silva, A. (2012). Teaching Engineering Materials: CES EduPack.

Bionic leaf eats co2 to grow food. Atlas of the Future. (2019, November 4). Retrieved from https://atlasofthefuture.org/project/arborea-biosolar-leaf/

Briiv. (n.d.). Retrieved from https://www.briiv.co.uk/

Budaniya, M., & Rai, A. C. (2022). Effectiveness of plants for passive removal of particulate matter is low in the indoor environment. Building and Environment, 222. https://doi.org/10.1016/j.buildenv.2022.109384

Center for Science Education. How Weather Affects Air Quality | Center for Science Education. (n.d.). Retrieved from https://scied.ucar.edu/learning-zone/air-quality/how-weather-affects-air-quality

CITYTREE. Green City Solutions. (2022, May 11). Retrieved from https://greencitysolutions.de/en/citytree/

Chauhan, P., Rawat, M. S., & Gauba, P. (2017). Role of Plants in Indoor Air Remediation. International Journal of Engineering Technology Science and Research.

DeLuca, T. H., Zackrisson, O., Nilsson, M.-C., & Sellstedt, A. (2002). Quantifying nitrogen-fixation in feather moss carpets of boreal forests. Nature, 419(6910), 917–920. https://doi.org/10.1038/nature01051

Dodd, S. (2022, August 10). DMS: The Climate Gas You've never heard of. Woods Hole Oceanographic Institution. Retrieved October 28, 2022, from https://www.whoi.edu/oceanus/feature/dms-the-climate-gas-youve-never-heard-of/

Fortune Business Insights. (2022). (rep.). The global outdoor furniture market is projected to grow from USD 46.21 billion in 2021 to USD 66.55 billion by 2028 at a CAGR of 5.3% in 2021-2028. Retrieved from https://www.fortunebusinessinsights.com/outdoor-furniture-market-106406.

Global Market Insights. (2022). (rep.). The global outdoor furniture market is projected to grow from USD 46.21 billion in 2021 to USD 66.55 billion by 2028 at a CAGR of 5.3% in 2021-2028. Retrieved from https://www.fortunebusinessinsights.com/outdoor-furniture-market-106406.

Greater London Authority. (2013). Air Quality in Lambeth a guide for Public Health Professionals - London. Retrieved from https://www.london.gov.uk/sites/default/files/air_quality_for_public_health_professionals_-_lb_lambeth.pdf

He, C., Qiu, K., & Pott, R. (2019). Reduction of urban traffic–related particulate matter—leaf trait matters. Environmental Science and Pollution Research, 27(6), 5825–5844. https://doi.org/10.1007/s11356-019-07160-0

Health effects of air pollution - programmes. Impact on Urban Health. (2022, May 20). Retrieved from https://urbanhealth.org.uk/our-work/health-effects-of-air-pollution

Hughes, D. (n.d.). How urban spaces are transforming and the role of street furniture. Artform Urban - Urban Furniture. Retrieved from https://www.artformurban.co.uk/news/post/how-urban-spaces-are-transforming-and-the-role-of-street-furniture.html

Independent Digital News and Media. (2021, September 16). Alfresco dining to become permanent feature on some Central London streets. The Independent. Retrieved from https://www.independent.co.uk/life-style/food-and-drink/alfresco-dining-london-outdoor-pandemic-restaurants-b1921467.html

Jones, V. A. S., & Dolan, L. (2012). The evolution of root hairs and rhizoids. Annals of Botany, 110(2), 205–212. https://doi.org/10.1093/aob/mcs136

Kolokotroni, M., & Giridharan, R. (2008). Urban heat island intensity in London: An investigation of the impact of physical characteristics on changes in outdoor air temperature during summer. Solar Energy, 82(11), 986–998. https://doi.org/10.1016/j.solener.2008.05.004

London plan guidance. LGOV. (2022, November 11). Retrieved from https://www.london.gov.uk/programmes-strategies/planning/implementing-london-plan/london-plan-guidance

Marchese, K. (2022, March 10). The Olus Air Purifier unlocks the power of plants. DesignWanted. Retrieved from https://designwanted.com/olus-air-purifier/

O.d. (2021, December 6). AREP builds cooling bamboo tower as sustainable alternative to Modern AC Solutions. designboom. Retrieved from https://www.designboom.com/technology/arep-adiabatic-urban-cooling-system-12-05-2021/

Ónody, É., Fülöp-Pocsai, B., Tillyné Mándy, A., Papp, B., Tóth, E., & Ördögh, M. (2016). Comparison of propagation methods of different moss species used as wall and ground covering ornamental plants. International Journal of Horticultural Science, 22(3-4). https://doi.org/10.31421/ijhs/22/3-4./1192

Passively cooled building inspired by termite mounds - innovation - asknature. AskNature Passively Cooled Building Inspired by Termite Mounds Comments. (n.d.). Retrieved from https://asknature.org/innovation/passively-cooled-building-inspired-by-termite-mounds/

Perini, K., Castellari, P., Gisotti, D., Giachetta, A., Turcato, C., & Roccotiello, E. (2022). Mosskin: A Moss-based Lightweight Building System. Building and Environment, 221, 109283. https://doi.org/10.1016/j.buildenv.2022.109283

Picon, A. (2022, July 13). When heat waves meet air pollution, death risks rise substantially. Scientific American. Retrieved from https://www.scientificamerican.com/article/when-heat-waves-meet-air-pollution-death-risks-rise-substantially1/

Rahman, M., McConnell, R., Schlaerth, H., Ko, J., Silva, S., Lurmann, F., Palinkas, L., Johnston, J., Hurlburt, M., Yin, H., Ban-Weiss, G., & Garcia, E. (2022). The effects of co-exposure to extremes of heat and particulate air pollution on mortality in California: Implications for climate change. American Journal of Respiratory and Critical Care Medicine. https://doi.org/10.1164/rccm.202204-0657oc

Sæbø, A., Popek, R., Nawrot, B., Hanslin, H. M., Gawronska, H., & Gawronski, S. W. (2012). Plant species differences in particulate matter accumulation on Leaf Surfaces. Science of The Total Environment, 427-428, 347–354. https://doi.org/10.1016/j.scitotenv.2012.03.084

Sunda, W., Kieber, D. J., Kiene, R. P., & Huntsman, S. (2002). An antioxidant function for DMSP and DMS in Marine Algae. Nature, 418(6895), 317–320. https://doi.org/10.1038/nature00851

Technavio. (2021). (rep.). Outdoor Furniture Market Growth, Size, Trends, Analysis Report by Type, Application, Region and Segment Forecast 2021-2025. Retrieved from https://www.technavio.com/report/outdoor-furniture-market-analysis-industry-analysis.

The amazing abilities of the inconspicuous plant moss. Green City Solutions. (2022, March 1). Retrieved from https://greencitysolutions.de/en/the-amazing-abilities-of-the-inconspicuous-plant-moss/
